If you are considering an onsite sewage treatment system installation we offer a no obligation site visit by one of our technical designers who will work with you from start to finish. We will outline the options open to you from having a new installation for upgrading, refurbishing or repairing your current system. We will spend time with you to understand your installation needs and to investigate your existing sewage treatment system’s performance.
This septic system installation in Kelowna, British Columbia was completed for a new home build on a very challenging site with steep slopes and limited space.

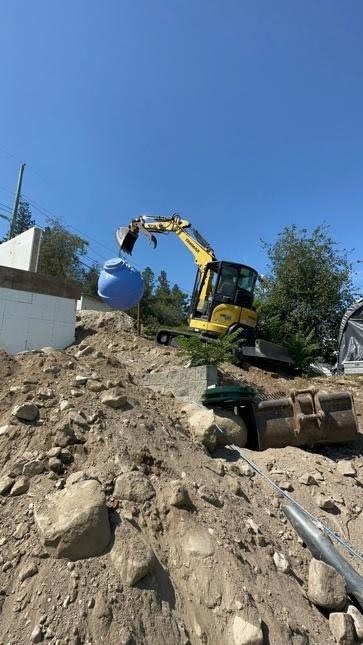

We began by adding a layer of bedding sand and compacting the area thoroughly before setting the septic tanks in place. Water was added to improve compaction and ensure a stable base.
Due to the location near Okanagan Lake, access to the site required maneuvering equipment up a steep bank from the lakeshore.
Due to the way the building sewer exited the home, we redirected the drain line from the septic tank back toward the front of the property into a pump chamber.
From there, we installed force mains across the highway to reach the drainfield locations. Two separate lines were installed, one for each home, and were color-coded for proper identification.
Using horizontal directional drilling, we safely routed the force mains beneath the highway without disturbing the surface.
The drainfield installation utilized Eljen GSF Modules to achieve Type 2 effluent quality. Specified sand was placed and shaped to form raised mounds supporting the modules.
Pipework was installed to distribute effluent evenly through a distribution box, ensuring balanced flow across the system.
Protective fabric was placed over the modules and pipes before additional sand was installed to prevent intrusion and maintain system integrity.
A secondary drainfield was constructed for an additional home, following the same process of
A secondary drainfield was constructed for an additional home, following the same process of sand placement, module installation, and final grading.
Once complete, the system was contoured, leveled, and prepared for topsoil and landscaping.
The septic tanks were then backfilled using sand and a stone slinger, bringing them up to final grade and ready for the next phase of construction.
We design and install efficient septic systems that provide lasting and durable results. Not only do we provide value for your home’s wastewater needs, but we also provide informative articles, videos, and services to help you understand your onsite septic system.
We are experts in onsite wastewater systems. We offer septic system design, installation and repair & replacements for residential and commercial properties across Kelowna, British Columbia.
Our team considers 3 factors prior to design and installation. We will identify the soil type by excavating test pits, conducting hydraulic tests, find the limiting conditions such as bedrock, high water table and impermeable layers of soil, and we will take note of all space requirements to ensure a smooth and successful installation of your septic system.
We are fully insured and registered so we comply with all regulatory requirements for installation services. We understand that original designs and plans can change which is why our team can adapt quickly to any last-minute changes that might be necessary.
Providing services across British Columbia gives us valuable knowledge on such a wide variety of topographies, soil types and lot restrictions. Through this experience it is very likely we can help you with your wastewater challenges.
